Bijkomende informatie
| Connectiviteitstechnologie | Bedraad |
|---|---|
| Hostinterface | PCI Express |
| Interface | Ethernet |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| PCI versie | 2.1 |
| Netwerkstandaard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Bekabelingstechnologie | 10/100/1000BaseT(X) |
| Maximale afstand | 100 m |
| LAN controller | Intel I210 |
| Intern | Ja |
| Compatibele producten | Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC , P4308IP4LHJCL |
| Breedte | 65 mm |
| Diepte | 20 mm |
| Hoogte | 55 mm |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Soort kabel | RJ45 Category 5, up to 100 m |
| Marktsegment | Server |
| Thermisch vermogen | 1 W |
| Intel® Virtual Machine Device Queues (VMDq) | Nee |
| PCI-SIG* SR-IOV Capable | Nee |
| On-chip QoS and Traffic Management | Nee |
| Intel® Flexible Port Partitioning | Nee |
| Snelheid en sleuf breedte | 2.5 GT/s, x1 Lane |
| Lage halogeen opties beschikbaar | Nee |
| Intelligent Offloads | Ja |
| iWARP/RDMA | Nee |
| Fiber Channel over Ethernet | Nee |
| Intel® Ethernet Power Management | Ja |
| Intel® Data Direct I/O Technology | Nee |
| Soort aansluiting | PCIe v2.1 (2.5 GT/s) |
| Conflict Free | Ja |
| Type product | Network Interface Card |
| Thermal Design Power (TDP) | 1 W |
| aantal QPI links | Single |
| Processorfamilie | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Ethernet-adapter ARK ID | 68668 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Optische drivecontroller | Intel I210 |
| Bekabelingstype | RJ45 Category 5, up to 100 m |
| Brackethoogte | Low-Profile (LP) / Full-Height (FH) |
| Introductiedatum | Q1'13 |
| Lanceringsdatum | Q1'13 |
| Kaartkabeldrager netwerkinterface | Copper |
| Kaarttype netwerkinterface | Server |
| URL productsamenvatting | http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html |

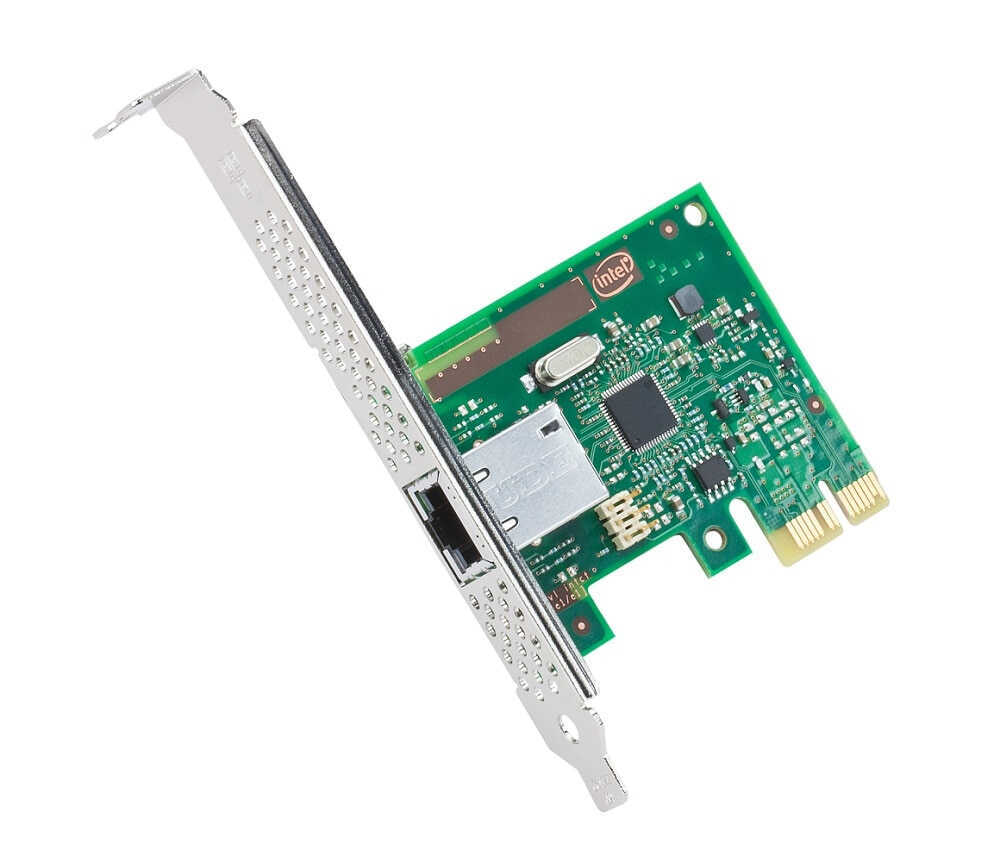

| Productnaam | Intel Ethernet Server Adapter I210-T1 |
| Status | Launched |
| Laatste wijziging | 63903513 |
| Productfamilie | Intel Gigabit server adapter |
| Productserie | Intel I210 |
| brand | Intel |
